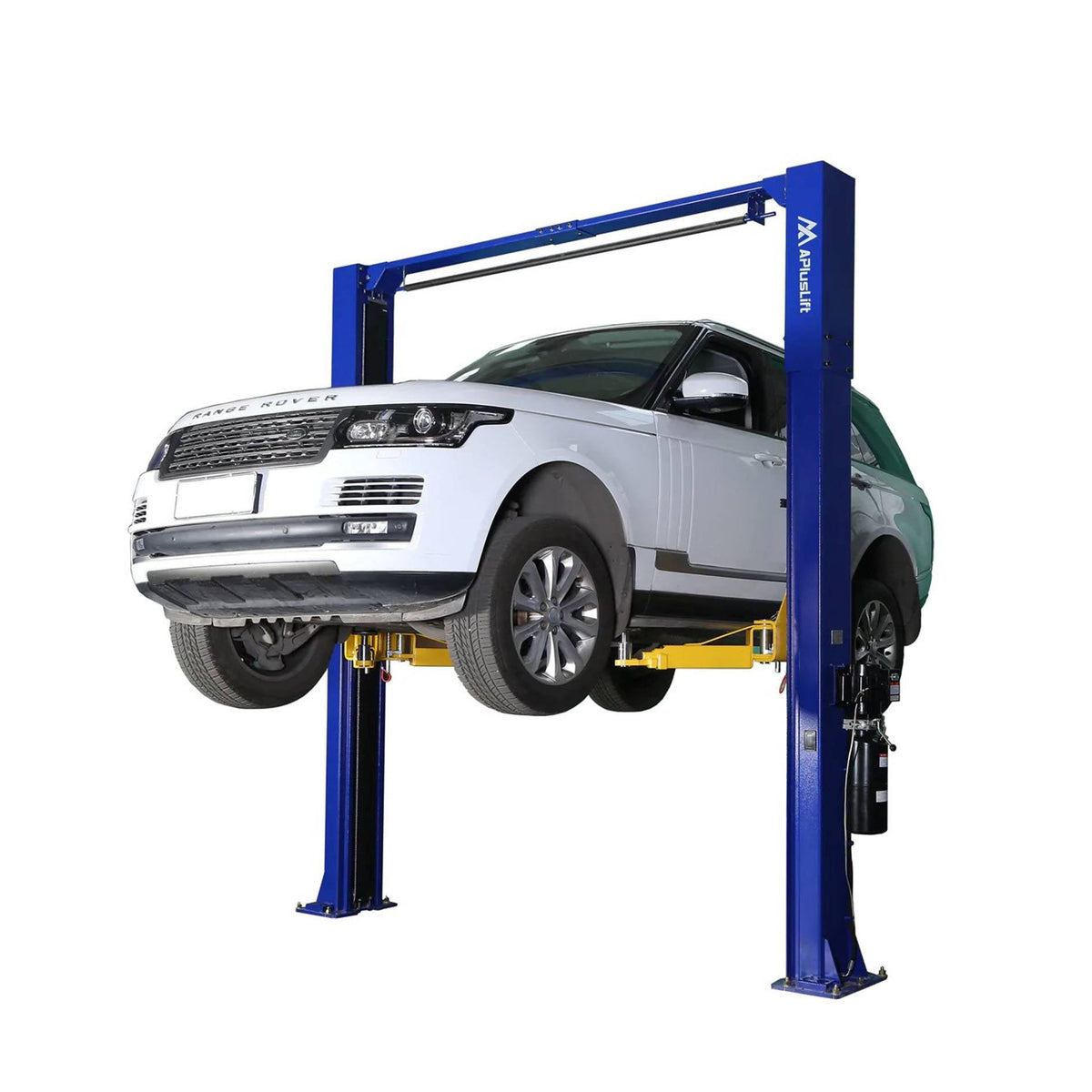

APlusLift HW-10KOH-A 10,000 LB 2-Post Over Head Heavy Duty Car Lift

PRODUCT DESCRIPTION :

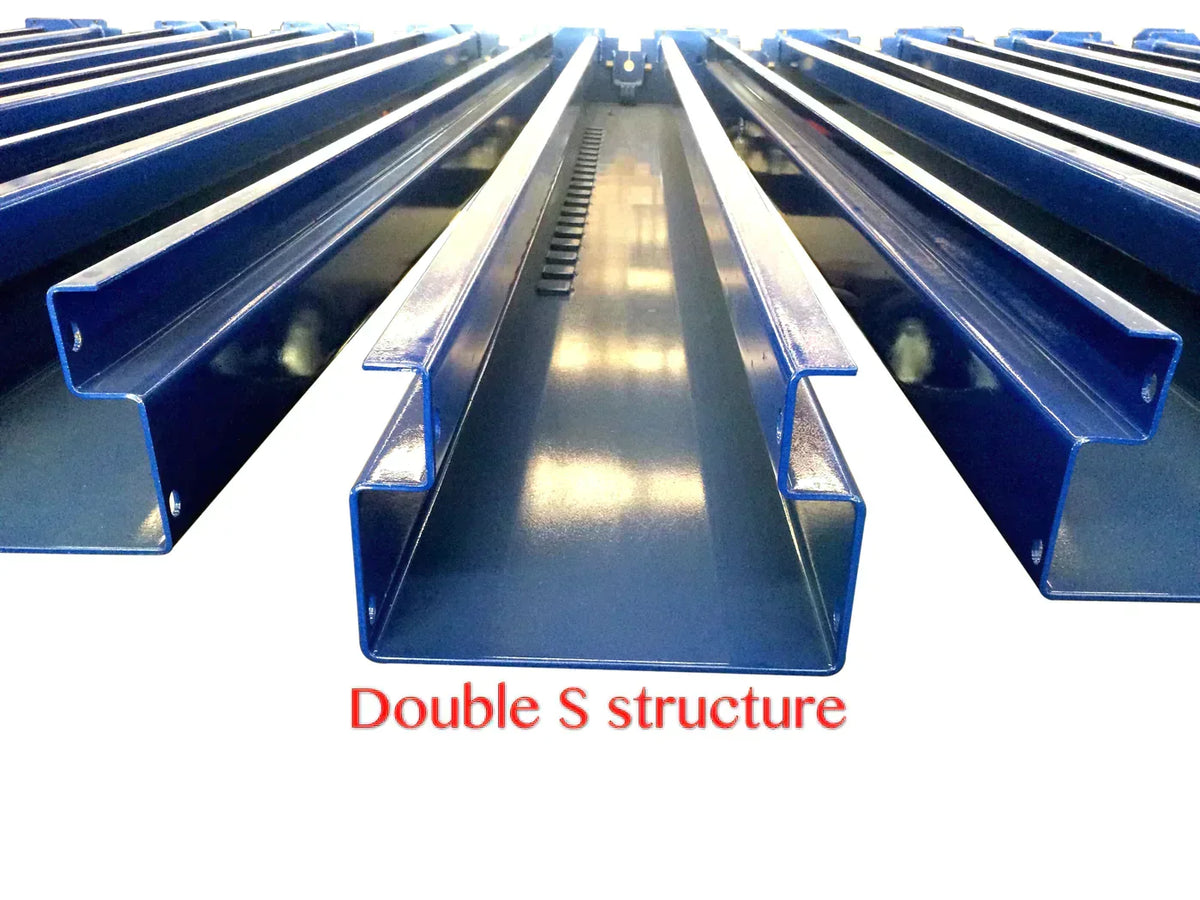

APlusLift HW-10KBP-A car lift (auto hoist) is one of the most affordable floor plate car lifts built with quality materials and good workmanship. The lift has a strong double “S” column design to support 10,000 LB capacity. It is upgraded with thicker steel for stronger support (Column Steel upgraded to 13/64″ from 11/64″; Carriage and Arm Steel upgraded to 15/64″ from 3/16″; Carriage yoke upgraded to 9/16″ from 15/64″)

Specification and Features :

• Installation Manual

• Column Steel Thickness: 13/64″
• Carriage Steel Thickness: 15/64″
• Carriage Yoke Thickness: 9/16″
• Arm Steel Thickness: 15/64″
• Base Plate Steel Thickness: 5/8″

• Combo (Symmetrical and Asymmetrical) Arm Assembly
• Straight Front/Rear 3 Stage reach from 22 7/8″ to 42 5/8″
• Straight Rear 2 Stage reach from 33 5/8″ to 52 7/8″
• Screw-in pads 4 pieces included
• Truck adapters 4 pieces included

• Double point safety lock release

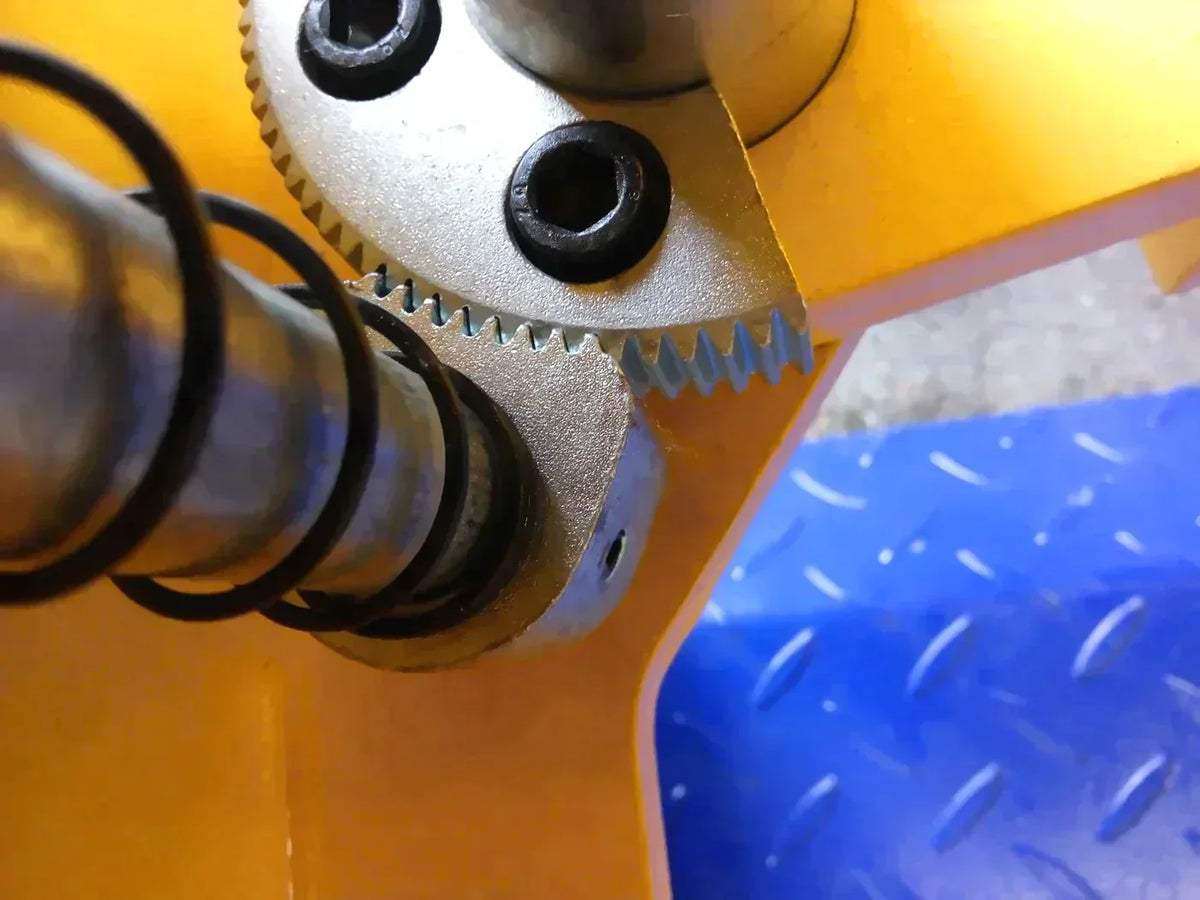

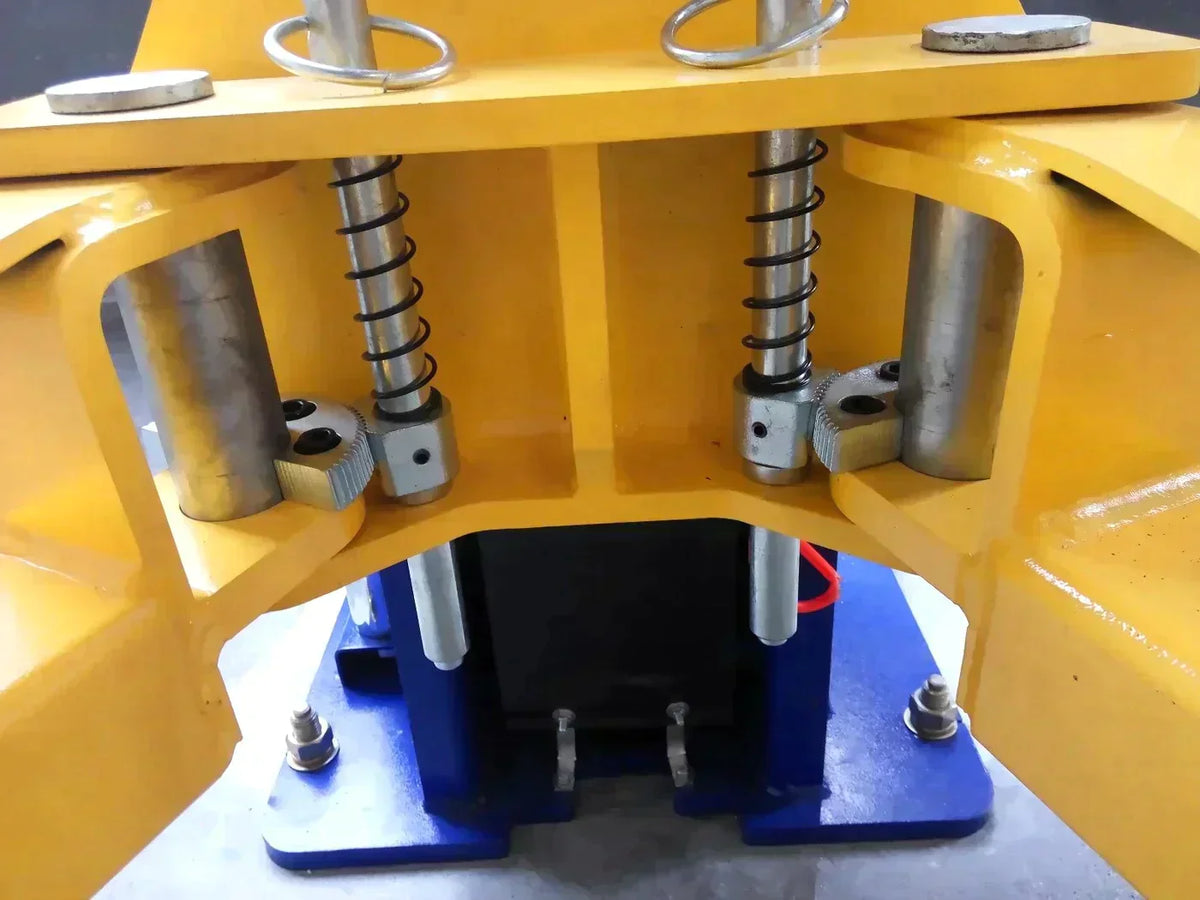

• Automatic arm lock restraints
• Relief valve built in power pump to prevent overloading
• Door guards protection rubber
• Up-limit switch to protect cylinders working stroke used in safe length scope
• Heavy duty 3/8″ diameter cable and 5″ pulley that reduce high stress on synchronization process and increase cable life
• Upgraded Floor Plate, Beveled Diamond Plate Steel 5/32″ with Supporting Bracket.
• Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down

• Concrete Requirement: 6″ thick at 3500 psi reinforced with fiberglass or steel (4″ thick for vehicles 9000LB and below)
• Anchor bolts/mounting hardware included
• Tool trays and toe guards included
• Shipping Weight: 1,350 LB

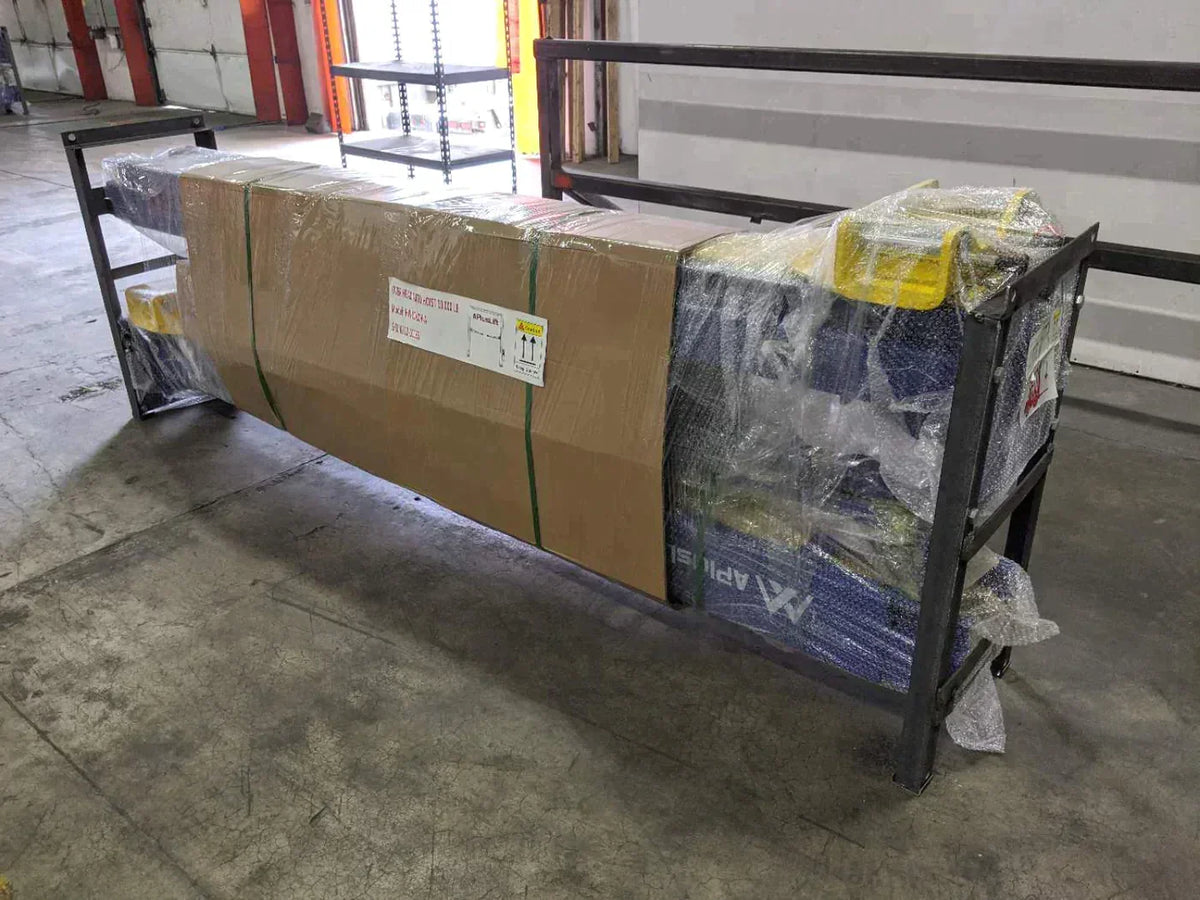

• Shipping package size: 113″L x 22″W x 40″H
